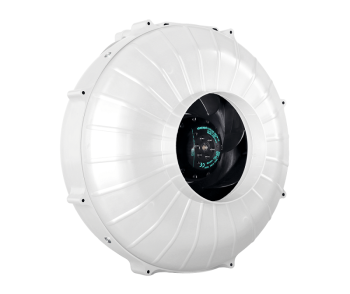

PrimaKlima developed a new highlight on the market: the PK160EC-TC circular in-line fan, which persuades with its high-quality manufacture, its energy efficiency, and a very silent service performance. The circular in-line fan contains a temperature control, as well as an integrated speed control, which is not only practical, but also puts aside the need to buy an optional speed control.
The integrated EC-motor by Ziehl-Abbeg (made in Germany) stands out through its low power consumption, high pressure generation, performance, and it is very silent in operation. The integrated speed control enables a continuous adjustment of the service performance and all that without any annoying humming noises.
The built-in speed control is adjusted to approximately 360 cbm/h (approx. 22watt power input) ex factory. With those adjustments volume, performance, and power consumption are in an optimal range. The maximum performance can be infinitely adjusted by a small screwdriver on the outside of the housing. At dimmed state the fan only uses the energy that corresponds to its revolution speed. The automatic temperature control completes the fan: simply set the desired room temperature (20 - 30°C) and the temperature control will do the rest.
Advantages at a glance:
- EC-Technology: electricity savings of up to 70% depending on the contamination in comparison to the AC version
- Super silent operation due to modern EC-technology
- Finally no more humming noises during the complete speed range
- Temperature-independent switch between 2 speed level
- Maximum speed is adjustable with a trimmpotentiometer. Ex factory adjusted to 360m³/h at an electricity consumption of 22watt
- The expected lifetime of the motor is > 12 years
- The top-class 170 watt EC motor by Ziehl & Abegg, max. performance 700m³/h, pressure 100mbar
Technical detail:
- Energy efficency: A++
- Voltage: 230 Volt 50/60 Hz
- Power input: 0-170 Watt / 0-0,74A (rotation speed dependent)
- Output: max. 1180 cbm/h
- Pressure max.: 1000 Pa
- max. operational temperature: 50 °C
- Diameter: 160mm
- Power plug approx. 2 Meter long
- Temperature sensor cable approx. 2 Meter long
- Weight: ca. 3,5 Kg
- Made in Germany
Scope of supply:
- Circular in-line fan PrimaKlima PK160EC-TC 1180m³/h Multispeed incl. connection cables and temperature sensor
The integrated EC-motor by Ziehl-Abbeg (made in Germany) stands out through its low power consumption, high pressure generation, performance, and it is very silent in operation. The integrated speed control enables a continuous adjustment of the service performance and all that without any annoying humming noises.
The built-in speed control is adjusted to approximately 360 cbm/h (approx. 22watt power input) ex factory. With those adjustments volume, performance, and power consumption are in an optimal range. The maximum performance can be infinitely adjusted by a small screwdriver on the outside of the housing. At dimmed state the fan only uses the energy that corresponds to its revolution speed. The automatic temperature control completes the fan: simply set the desired room temperature (20 - 30°C) and the temperature control will do the rest.
Advantages at a glance:
- EC-Technology: electricity savings of up to 70% depending on the contamination in comparison to the AC version
- Super silent operation due to modern EC-technology
- Finally no more humming noises during the complete speed range
- Temperature-independent switch between 2 speed level
- Maximum speed is adjustable with a trimmpotentiometer. Ex factory adjusted to 360m³/h at an electricity consumption of 22watt
- The expected lifetime of the motor is > 12 years
- The top-class 170 watt EC motor by Ziehl & Abegg, max. performance 700m³/h, pressure 100mbar
Technical detail:
- Energy efficency: A++
- Voltage: 230 Volt 50/60 Hz
- Power input: 0-170 Watt / 0-0,74A (rotation speed dependent)
- Output: max. 1180 cbm/h
- Pressure max.: 1000 Pa
- max. operational temperature: 50 °C
- Diameter: 160mm
- Power plug approx. 2 Meter long
- Temperature sensor cable approx. 2 Meter long
- Weight: ca. 3,5 Kg
- Made in Germany
Scope of supply:
- Circular in-line fan PrimaKlima PK160EC-TC 1180m³/h Multispeed incl. connection cables and temperature sensor
-
Tillverkare:
- Storlek: 160 mm
- Produktvikt: 3,50 kg
-
Mått
( Längd × Bredd × Höjd ): 38,00 × 36,00 × 28,00 cm
