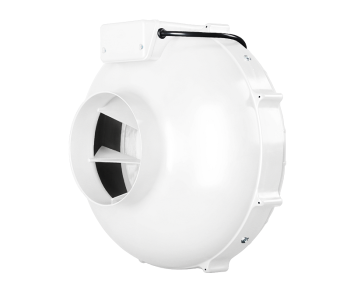

The PK160-TC is a high-efficient temperature regulated circular in-line fan by PrimaKlima, that is either equipped with an ebm-papst RadiCal AC motor made in Germany. The fan is extremely silent, even when it is set on a lower level. The in-line fan contains a temperature regulation, as well as an integrated speed control, which useful and spares the purchase of an optional speed controller. With its backwards curved impellers, the PK160-TC generates up to 15% more airflow than common axial-fans and that at a very low power consumption rate.
The durable and maintenance-free ball bearing contribute to a very easy engine operation. The fan is equipped with a capacitor motor, which is optimally fitted to the housing. The entire housing is made of high-impact-proof, fire-resistant polyamide (nylon).
The temperature is from 20-30°C continuously adjustable, the motor revolution speed from 0-100%. The temperature sensor is approx. 2m long.
The connections, condenser and regulation technology are completely integrated in the housing. The fan comes completely wired.
Technical details:
- Voltage: 230V 50/60Hz
- Power: 110 watt
- Amperage: 0,48 A
- Flow rate: 800 m³/h
- Connection diameter: 160 mm
- Max. operation temperature: 50°C
- Weight: approx. 3,34 kg
- Cable length: approx. 2m
Features:
- ebm-papst motor made in Germany
- Backwards curved impellers
- Energy efficient
- Low noise emissions
- Adjustable temperature and speed control
- Impact-proof and durable housing
- Connection- and control system inside the housing
-
Tillverkare:
- Storlek: 160 mm
- Produktvikt: 3,34 kg
-
Mått
( Längd × Bredd × Höjd ): 36,00 × 36,00 × 25,00 cm
