PrimaKlima Carbon Filter Industry 1150m³/h Ø200 mm

The Prima Klima Industry Line premium carbon filters are characterised by a remarkably high durability and an incomparable odour adsorption. The filters are refillable and have a 4cm deep bed of high quality, highly activa-ted CTC80 carbon with a active surface area of > 1200m²/g. Thus ensuring an exceptionally long contact time between air and carbon, which is highly effective for removing odours. High-quality metal press parts provide maximum stability and durability. The extra-long flange provides a secure connection. Prima Klima carbon filters are almost 100% recyclable.

• The activated carbon filter has to be connected to a compatible extractor fan

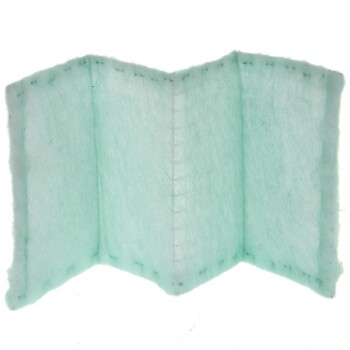

• The filter comes ready for connection and inclusive a pre-filter fleece
• Approx. 99% of all odor molecules are absorbed

The following aspect are important for the use of activated carbon filters:

• Never smoke near the filter
• Cigarette smoke reduces the durability of the activated carbon significantly
• The filter should never be used without a pre-filter fleece
• The pre-filter has to be exchanged regularly
• Never exceed the specified cubic performance
• The filter has to be used with a minimum of 25% of the cubic-performance
• The humidity should not exceed 85% over a longer period
• During room cleaning, the filter has to be shut off
• Never let the filter get in contact with water

Technical details:

• Weight: approx. 12,9 kg
• Height: approx. 800 mm w/o flange
• Diameter: approx. 280 mm
• Connection diameter: 200 mm
• Fill thichness (mm): 40
• Max Airflow: 1650 m³/h
• Optimal Airflow: 1150 m³/h
• Activated carbon: CTC80-3mm 8,7 Kg
