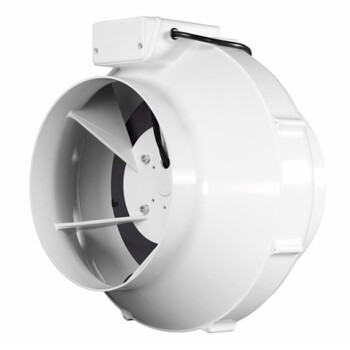

The Prima Klima PK250-L1 is highly efficient inline duct fan equipped with an ebm-papst AC motor with backward curved blades which has been optimally adapted to the housing. The entire housing is made of high impact resistant, flame proof polyamide (nylon). Maintance free long lasting ball bearings contribute to especially smooth running of the motor. The connections, capacitor and control system are fully integrated into the housing.
Details:
- Life time motor (full speed) > 80,000 hours
- Galvanised steel housing with powder coat finish
- Maintenance-free ball bearings
- UL, CSA, VDE approved motor
- Super silent operation
- 100% speed controllable
- Best quality motor from ebmpapst of Germany
- Automatic thermal reset switch protection
- Possible to operate in high relative humidity environment
Technical Data:
- Volume: max. 1300 cbm/h
- Output: 210 W
- Amps: 0,91A
- Voltage: 230 V/ 50-60 Hz
- Type of Bearing: Ball
- Max Ambient: 50°C
- Connection-Diameter: 250mm
- Measurements: 378mm x 276mm (w/h)
Details:
- Life time motor (full speed) > 80,000 hours
- Galvanised steel housing with powder coat finish
- Maintenance-free ball bearings
- UL, CSA, VDE approved motor
- Super silent operation
- 100% speed controllable
- Best quality motor from ebmpapst of Germany
- Automatic thermal reset switch protection
- Possible to operate in high relative humidity environment
Technical Data:
- Volume: max. 1300 cbm/h
- Output: 210 W
- Amps: 0,91A
- Voltage: 230 V/ 50-60 Hz
- Type of Bearing: Ball
- Max Ambient: 50°C
- Connection-Diameter: 250mm
- Measurements: 378mm x 276mm (w/h)
-
Tillverkare:
- Storlek: 250 mm
- Produktvikt: 4,84 kg
-
Mått
( Längd × Bredd × Höjd ): 39,00 × 39,00 × 30,00 cm
