AC Infinity Controller 69 – smart control for optimal climate conditions with Bluetooth + Wi-Fi

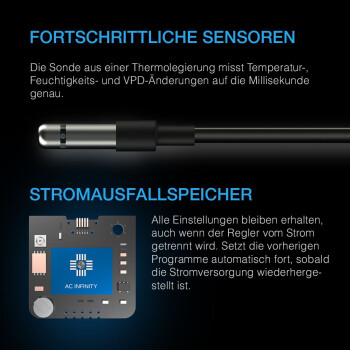

A next-generation controller that equips AC Infinity devices with intelligent programming to create optimal climate conditions. This central control unit can be connected to up to four different devices, from fans to grow lights, and offers independent climate and time programming for each device. The backlit display shows the temperature in Fahrenheit or Celsius and can be turned off while the programmes run in the background. It is equipped with a stand and can be mounted on the wall using the brackets supplied. The thermocouple sensor accurately measures the current temperature and humidity. It also measures the vapour pressure deficit (VPD), which measures the ambient temperature, relative humidity and leaf temperature of the plant to determine the optimal atmosphere. This allows you to monitor growing conditions more accurately than if you were to rely solely on temperature and humidity. This product is part of the UIS™ platform of attachments and smart controllers designed to integrate with each other to achieve your ideal environment.

Smart programming

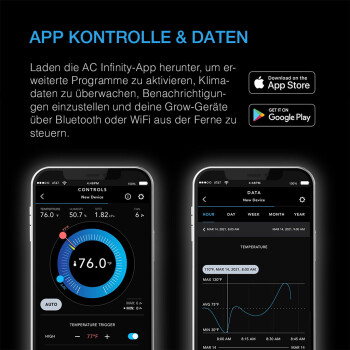

Connect up to four devices to program them together or independently. With dynamic programmes that adjust fan speed and light intensity based on temperature, humidity and VPD, you can set more than just simple on and off settings. Set minimum values at which your devices run constantly and which are only increased when the triggers are activated. Timer, cycle and schedule modes allow for on-demand activation for a variety of indoor growing projects. Connect securely to the AC Infinity app via Bluetooth or WiFi to remotely access your devices, unlock programmes, set alarms and notifications, view historical charts and export CSV data.

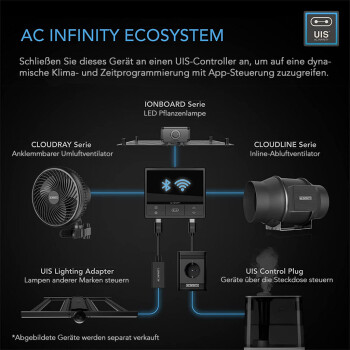

Compatibility

Devices within the UIS™ ecosystem, which includes all AC Infinity LED grow lights and EC fans, are compatible. Two adapter dongles are included for connecting EC motor fans with 4-pin Molex connectors. Compatible AC Infinity series devices include:

• CLOUDFORGE series - humidifiers
• CLOUDLINE series - inline duct fans
• CLOUDRAY series - clip-on circulation fans
• IONBEAM series - LED grow lights
• IONFRAME series - LED grow lights
• IONGRID series - LED grow lights
• IONBOARD series - LED grow light boards
• UIS Control Plug - Control of plug-in devices (0=off, 1-10=on)
• UIS Lighting Adapter - Control of other brands of lights

Details at a glance

• A digital controller that equips AC Infinity devices with smart control to create optimal climate conditions.
• You can control up to four devices, from fans to grow lights, and assign each one its own independent programming.
• Automate your devices to dynamically change speed and brightness based on temperature, humidity and VPD.
• Additional programming includes growth cycles, scheduling, timers, minimum values and custom transitions.
• Connect to our app via Bluetooth or WiFi to unlock advanced programmes, set alarms and notifications, and view climate data.
• Note on power supply: The controller draws power exclusively from a connected AC Infinity device (e.g. fan or LED light) and does not require a separate power supply unit.

Technical specifications:

• Dimensions: 9.3 x 7.9 x 2.5 cm
• Number of individually controllable devices: 4
• Max. supported power: 10 W
• Input voltage: 9 - 18 V
• Power: 1 W
• Current: 0.1 A
• App connection: Bluetooth or Wi-Fi
• Humidity range: 35 - 85% RH
• Temperature range: 0 - 60 °C
• Certifications: CE, RoHS
• Manufacturer: AC Infinity Inc.
