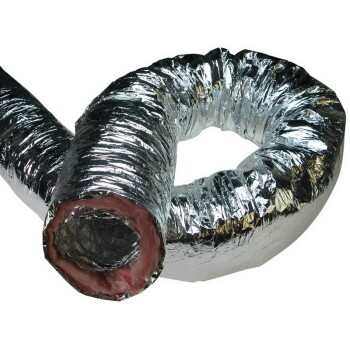

SONODEC Acoustic Ducting ø102mm - ø406mm, Length 10 meter

sound-insulated, opaque and flexible ventilation hose from Sonodec

The Sonodec series consists of a fully flexible, perforated aluminum laminate inner tube, an acoustic and thermal Insulating wool layer (25mm thick) and a glass-reinforced outer sheath. Sonodec prevents the formation of condensate and reduces installation noises.

An overview of details:

• inside hose: aluminium/polyester laminate
• Barrier layer: Polyester barrier layer
• Insulation wool blanket: 25mm, 16 kg/m3
• Outer jacket: aluminium/polyester laminated
• R value insulating wool: 0.69 m2K/W
• Temperature range (°C): inner hose: -30/+140, outer hose: -30/+140
• maximum operating pressure (Pa): +2000
• Minimum bending radius: 0.54 X ø + thickness of insulation wool
• material structure: perforated aluminium laminate / polyester barrier layer / insulating wool / aluminium laminate

Advantages:

• can easily be cut to the desired length and glued on both sides (e.g. with a silencer)
can be used as a silencer
• No special tools for cutting or fixing required
• delivered 10 meters in one piece, compressed to 1.2 meters
• Simple installation, suitable for round or oval connections
• No toxic gases are released in the event of fire
• The products have been tested for fire resistance

Available in the following sizes:

• Sonodec Acoustic Ducting ø102 mm length 10m
• Sonodec Acoustic Ducting ø127 mm length 10m
• Sonodec Acoustic Ducting ø152 mm length 10m
• Sonodec Acoustic Ducting ø160 mm length 10m
• Sonodec Acoustic Ducting ø203 mm length 10m
• Sonodec Acoustic Ducting ø254 mm length 10m
• Sonodec Acoustic Ducting ø315 mm length 10m
• Sonodec Acoustic Ducting ø356 mm length 10m
• Sonodec Acoustic Ducting ø406 mm length 10m
